Project 002 / Hardware

EVO Hitbox

A custom fighting-game controller built for EVO with acrylic plates, mechanical switches, and a Brook board at the center.

Controller / Acrylic / Hand wiring

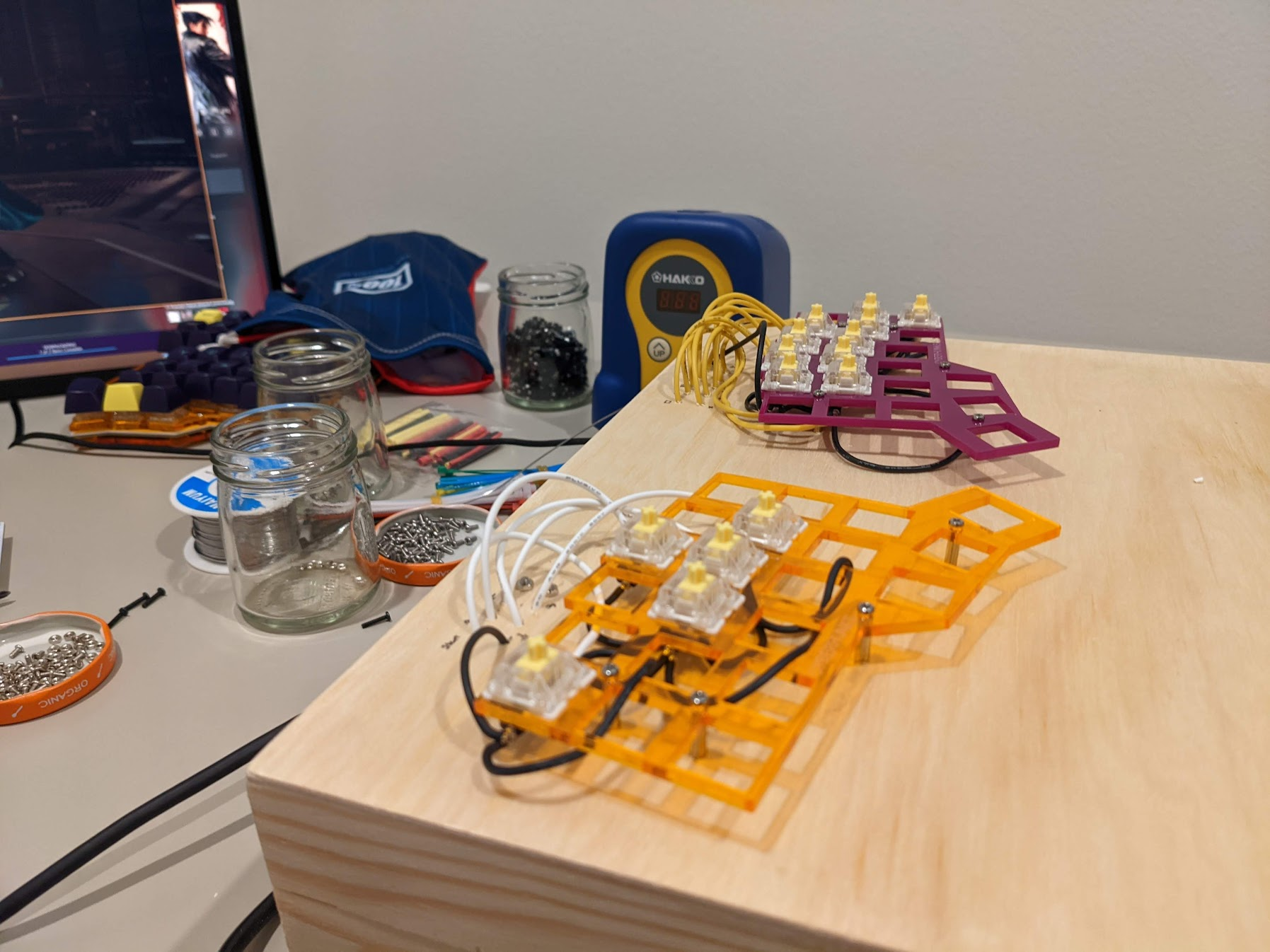

Workbench build
Workbench build

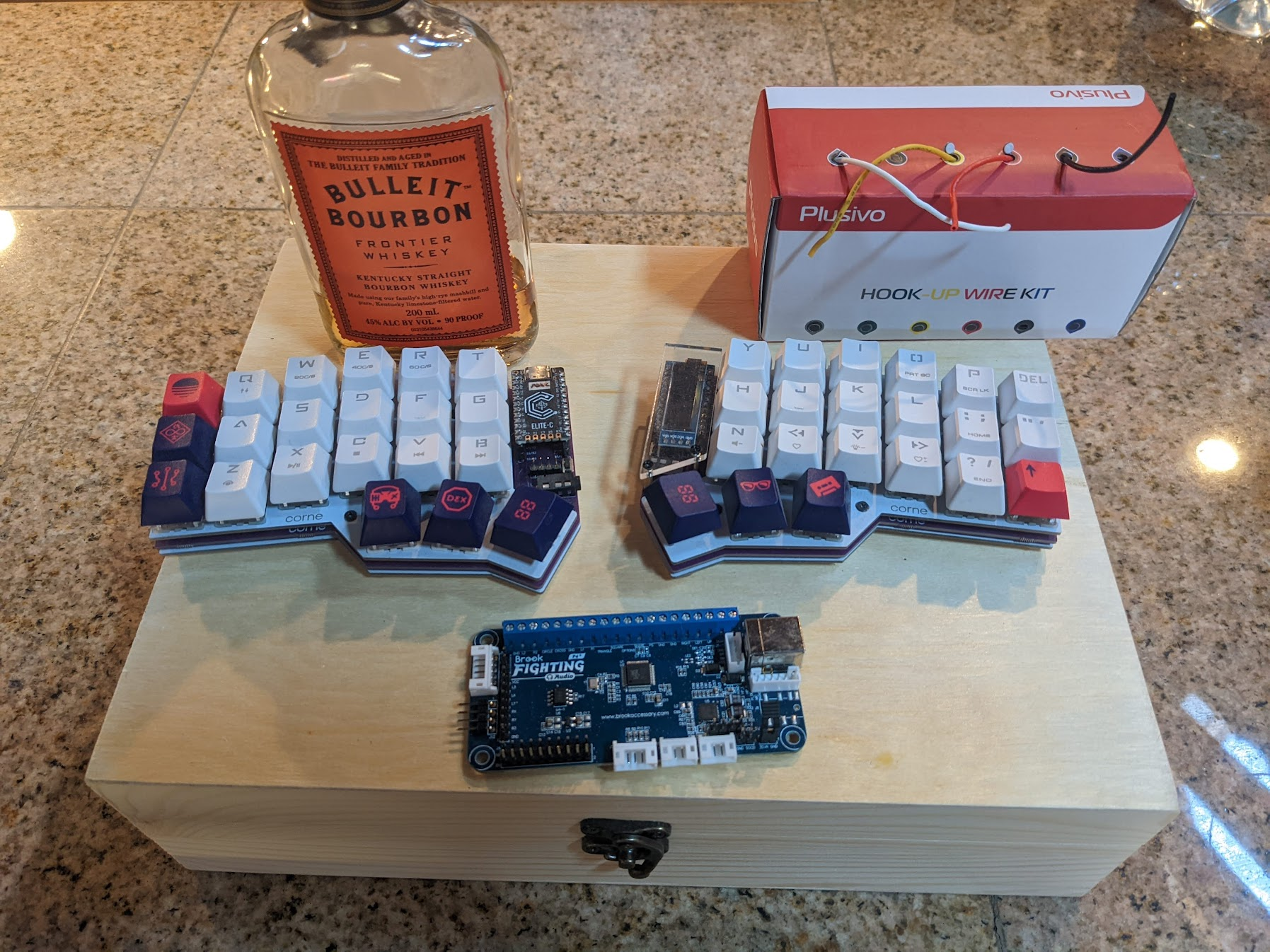

Controller parts and wiring
Controller parts and wiring

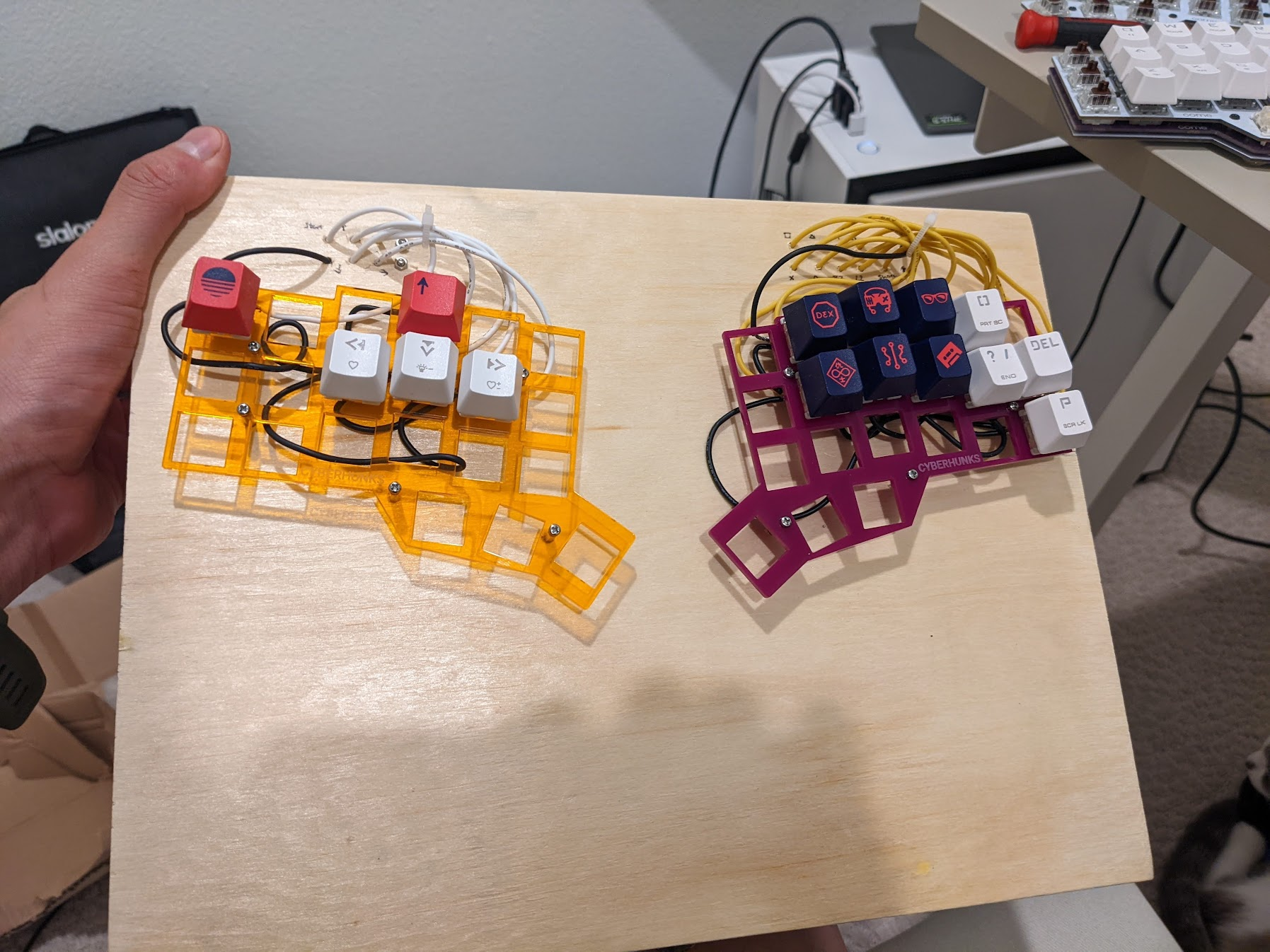

Switch plate detail
Switch plate detail

Object

The controller uses stacked acrylic, low-profile switches, and direct wiring into a Brook Universal Fighting Board. The result is compact, legible, and easy to inspect.

Notes

The build keeps the wiring visible enough to understand, but clean enough to live with. Signal wires stay separate, and ground can be shared across the buttons.
